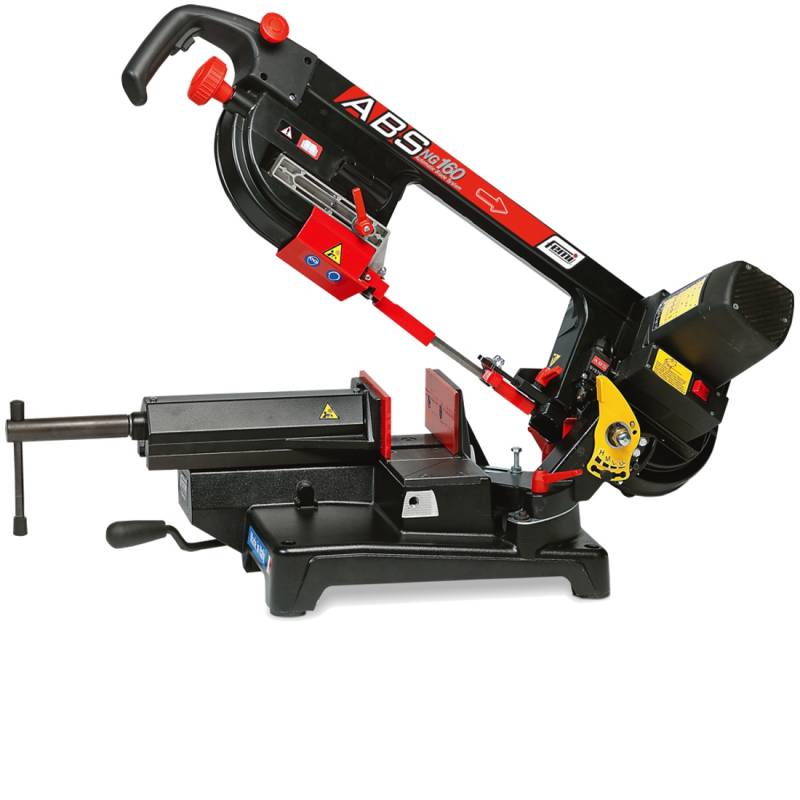

FEMI ABS NG 160
£1,400.00
Max Capacity: 160 x 140mm
Materials: Ferrous, Non-Ferrous, PVC, Sections
Description
Features FEMI’s ‘Push-Click’ System with selector and automatic cut-off switches, Integrated lubricating system, Side rollers to support material on the infeed and outfeed, Energy saving motor with the ABS system, Emergency Stop button, Patented Blade tension device providing correct blade tension, 150mm Diameter and 150mm square cutting capacity.
Click Here for a copy of the FEMI ABS NG 160 Brochure
Measurements
Blade Size: 1735 x 13 x 0.9
Blade Speed: 35 ~ 80 m/min
Additional Information
Motor Size: 2.0kw
Electrical Supply: 240v - 50hz
Voltage: Single Phase
Bow Descent: 4 Down Feed Speeds
Cutting Information
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 155mm | 100mm | |||
| Rectangular Section Horizontal (mm) | 160 x 140mm | 105 x 120mm | |||
| Square Section (mm) | 150 x 150mm | 100 x 100mm |
Need something bigger?
Looking for larger machinery, help with installation and a maintenance contract?
Visit our sister company website:
For an extensive range of Industrial saws and metal forming equipment.
